- MD EPYC™ 9004 Series processors
- AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology
- Single processor, 5nm technology
- 12-Channel RDIMM DDR5, 24 x DIMMs
- 2 x 10Gb/s BASE-T LAN ports (Broadcom® BCM57416)
- 1 x Dedicated management port
- 7 x MCIO 8i with Gen5/Gen4 NVMe and SATA ports
- Up to 16 x SATA 6Gb/s devices supported
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 4 x PCIe Gen5 x16 expansion slots
-14%

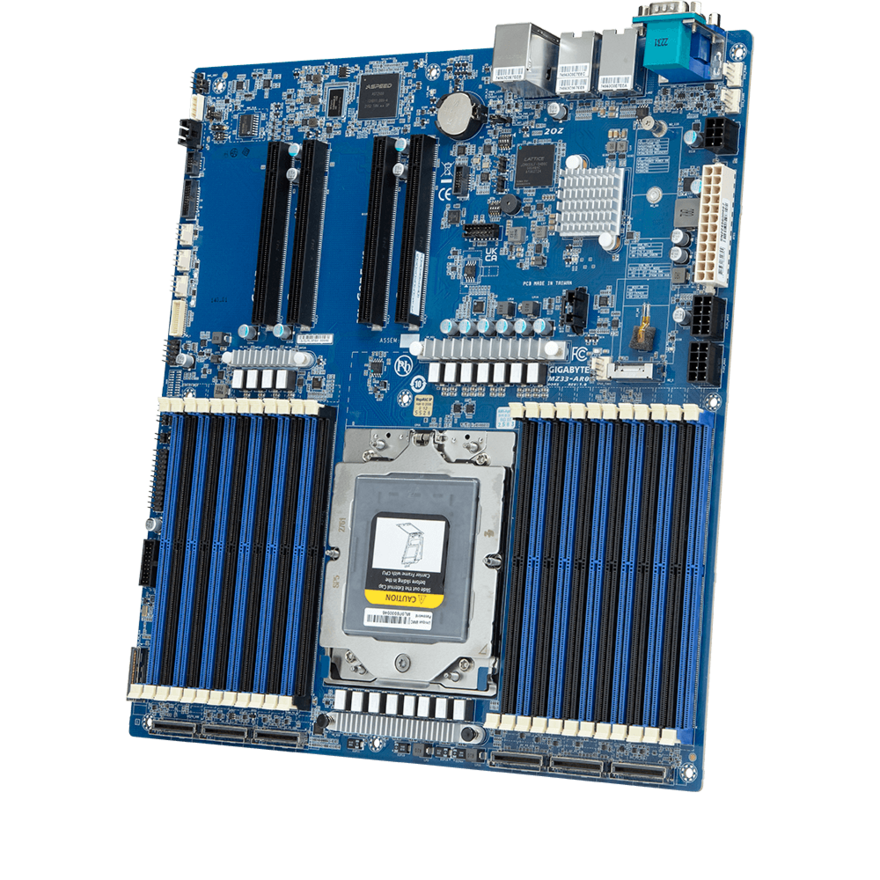

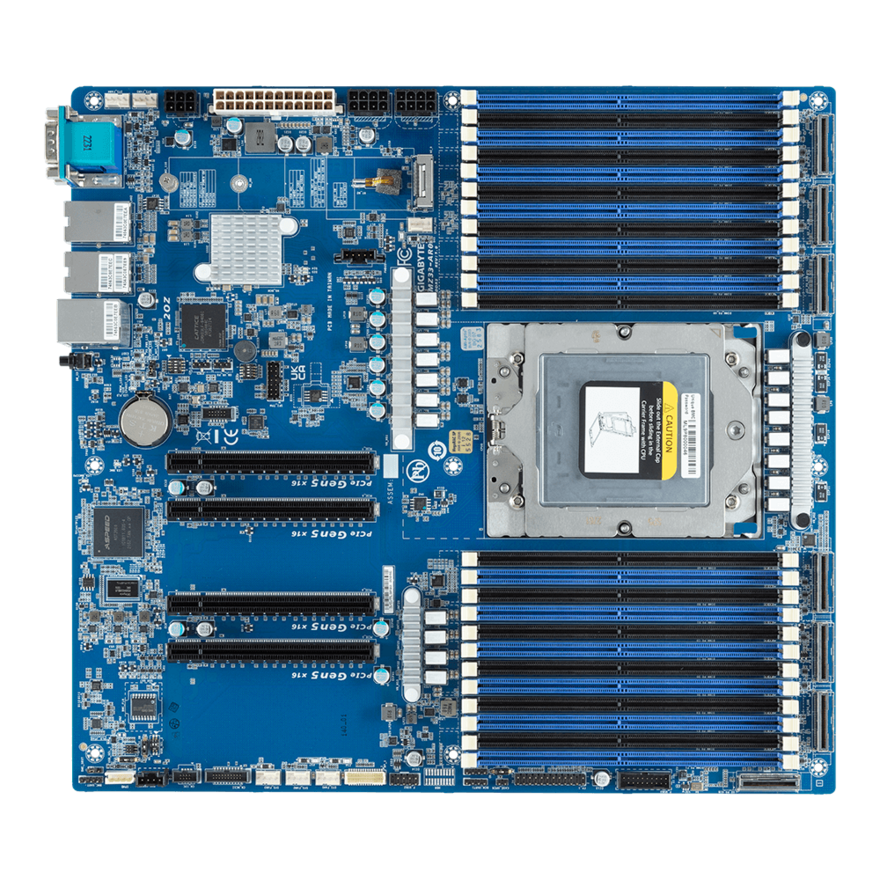

MZ33-AR0
₹81,000.00
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specification
| Core Specifications | |
|---|---|
| Edition | MZ33-AR0 |
| Form Factor | E-ATX |
| CPU Socket | SP3 x2 |
| Chipset | System-on-Chip |
| RAM Memory Support | |
|---|---|
| Memory Type | DDR5 |
| Memory Channel | 12 |
| Dimm slots | 24 |
| Memory Type (ECC) | |
| Memory Type (R/U) | RDIMM / LRDIMM |
| Memory Speed (Mhz) |
|
| Max. Memory Capacity | |
| Audio | |
|---|---|
| Audio | |
| Graphics Support | |
|---|---|
| Primary GPU Interface | PCIe 4.0 (x16) |
| NVIDIA SLI Support | N/A |
| AMD CrossFire Support | N/A |
| Integrated Graphics | Integrated ASPEED AST2500 |
| On-Board Graphics Connectors | D-Sub (VGA) |
| Internal Connectivity | |
|---|---|
| Expansion Slots |
|
| SATA Support | SATA3 |
| RAID Support via | |
| Storage Mode Support | |
| Internal I/O |
|
| External Connectivity | |
|---|---|
| Network Interface Type | Dual Wired 10G LAN + Mgmt LAN |
| Network Chip/Modules | 1 x Mgmt LAN (10/100/1000) |

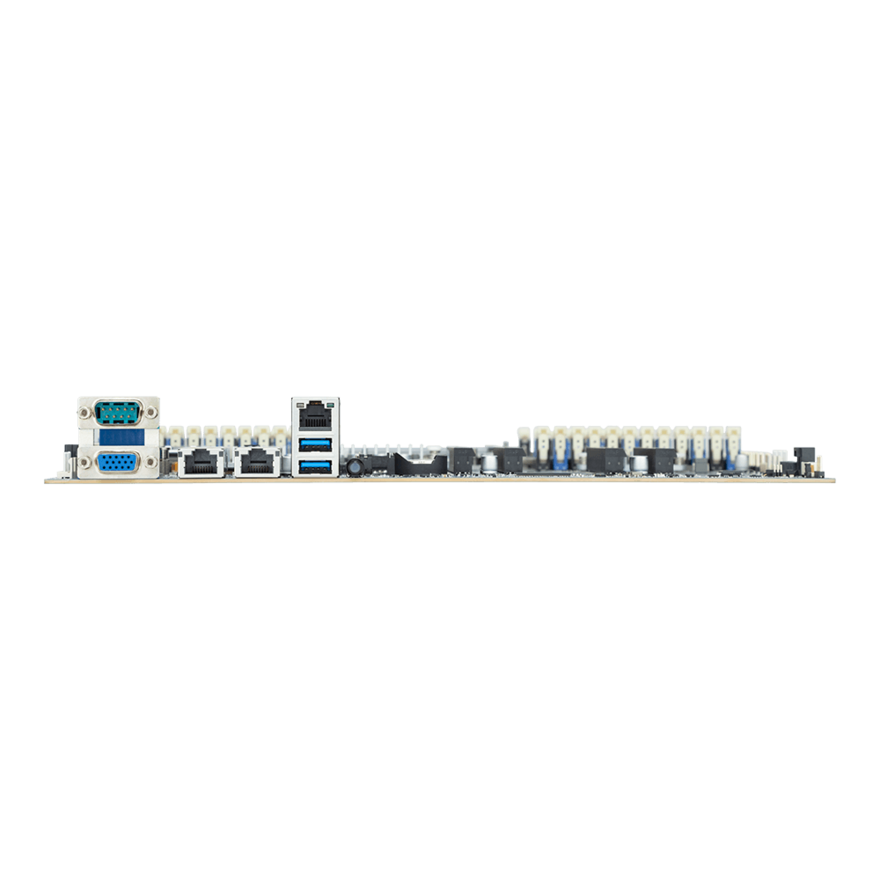

| Rear I/O Connectors |
|
| Additional Specifications | |
|---|---|
| Water Cooled | No |
| Cooling | |
| QPI Speed | N/A |
| Board Dimensions | 409 x 355 x 78 mm |
