- 2nd Gen. Intel® Xeon® Scalable Processors
- Intel® Xeon® W-3200 Processor Family
- Single processor, LGA 3647
- 6-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
- Supports Intel® Optane™ DC Persistent Memory
- Dual 1Gb/s LAN port (Intel® I210-AT)
- 1 x Dedicated management port
- 2 x SlimSAS for 8 x SATA 6Gb/s ports
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 7 x PCIe Gen3 x16, x8 and x4 expansion slots
- Aspeed® AST2500 remote management controller
-15%
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specification
| Brand | GIGABYTE |
|---|---|

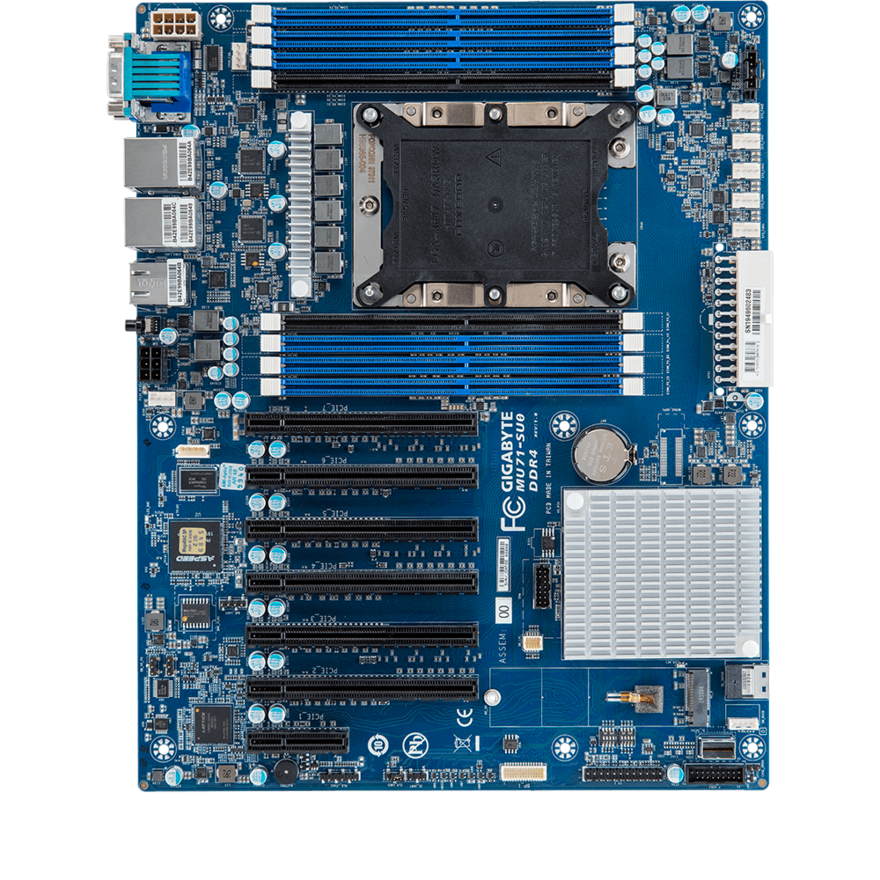

| Model | MU71-SU0 |
| CPU Socket Type | Socket P+ |
|---|---|
| CPU Type | Supports 2rd Gen Intel Xeon Scalable Processors Supports Intel Xeon Platinum / Xeon Gold / Xeon Silver Processors |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 256GB |
| PCI Express 4.0 x16 | Slot_7: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_6: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_7 Slot_5: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_5 Slot_3: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_2: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_3 Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot |
|---|
| SATA RAID | 0/1/10/5 |
|---|---|
| M.2 | 1 x M.2 slot: - M-key - PCIe Gen3 x4 per slot - Supports NGFF-2280 cards |
| SAS | 2 x SlimSAS for 8 x SATA III 6Gb/s ports |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |

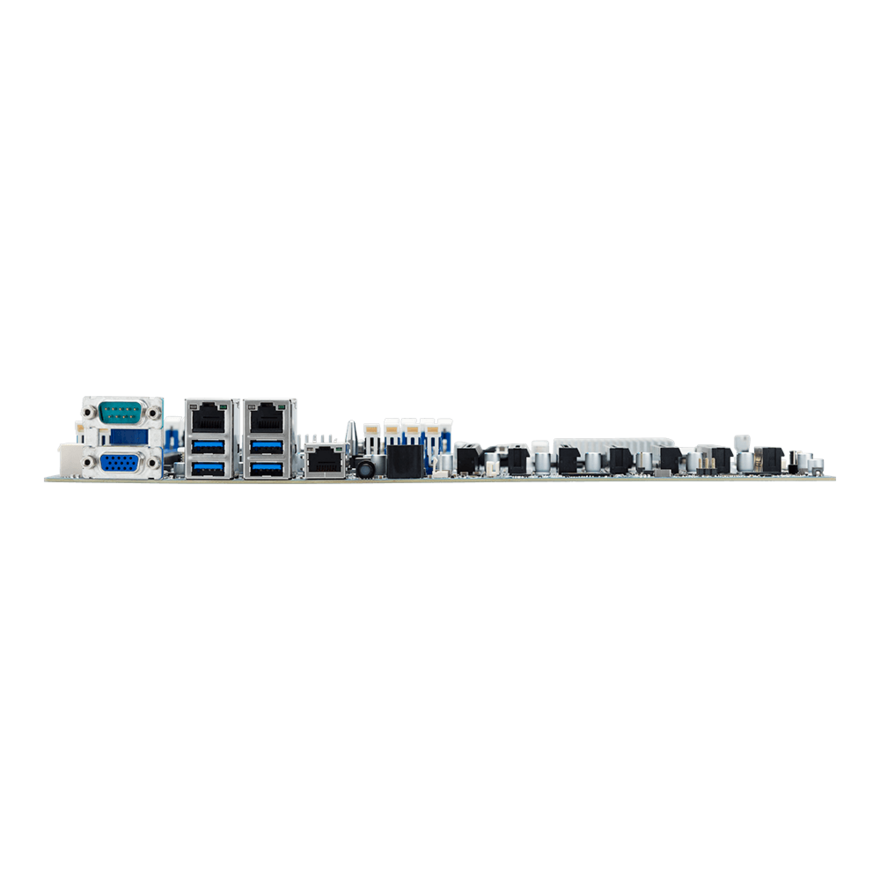

| Back I/O Ports | 4 x USB 3.0 1 x VGA 1 x COM 2 x RJ45 1 x MLAN 1 x ID button with LED |
|---|
| Other Connectors | 11 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector (for PCIe slot) 2 x SlimSAS connectors 1 x M.2 slot 1 x CPU fan header 6 x System fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x Buzzer |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 10" |
| Package Contents | 1 x MU72-SU0 1 x I/O shield 1 x Quick start guide 1 x SlimSAS for 4 x SATAIII 6Gb/s cable |
|---|
