- Supports Intel Whitley Platform:formerly Cascade Lake, Skylake
- LGA -3647 -4/5, Socket P4/P5 or Socket P+
- Aluminum Stacked Fins with Embedded Copper Heat Pipes
- Up to 205 Watts CPU Heat Dissapation
- Dimensions:108.0 x 80.0 x 66.0 mm”
-13%

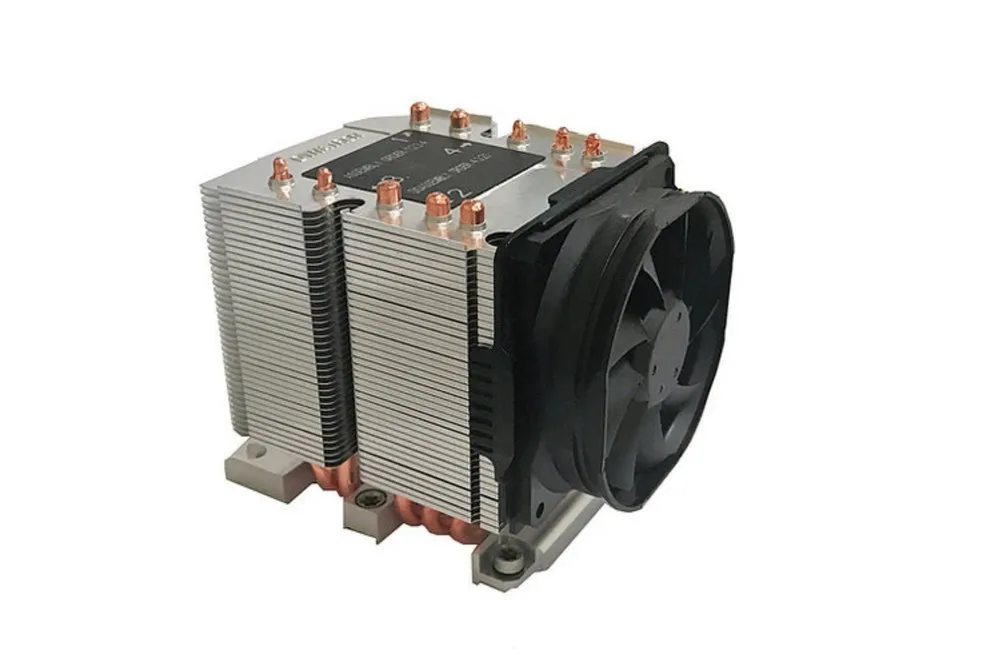

AUK Intel (2nd Generation)-LGA3647 Socket
₹6,200.00
Recommend for Intel® Xeon ® Platinum / Gold / Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake), Socket FCLGA 3647 Narrow ILM, Active Cooler for 2U Server and up, 60x60x25 mm PWM Fan, Aluminum heatsink with heat pipe embedded, Support CPU power up to 205 Watts heat dissipation.
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Specification
| CPU Support | Intel |
|---|---|
| CPU Socket | FCLGA3647 |
| Solution | 2U Server and Up |
| Dimensions | 108.0 x 80.0 x 66.0 mm |
| Weight | 470 g |
| Material | Aluminum Heatsink with Heatpipe Embedded |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 20%: 1600 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 ± 10% RPM |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Power | At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.28 W At Duty Cycle 100%: 7.20 W |
| Air Flow | At Duty Cycle 20%: 9.28 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 46.41 CFM |
| Noise Level | At Duty Cycle 20%: 18 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 52.94 dBA |
| Air Pressure | At Duty Cycle 20%: 0.76mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O |
| Lead Wire Pin Out | Lead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
