Key Features

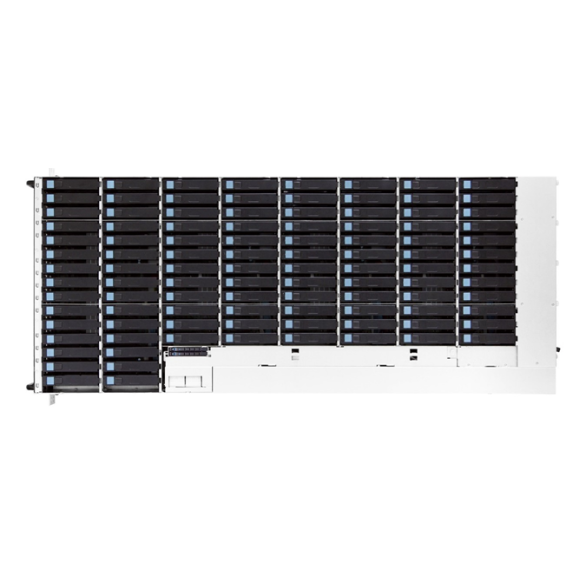

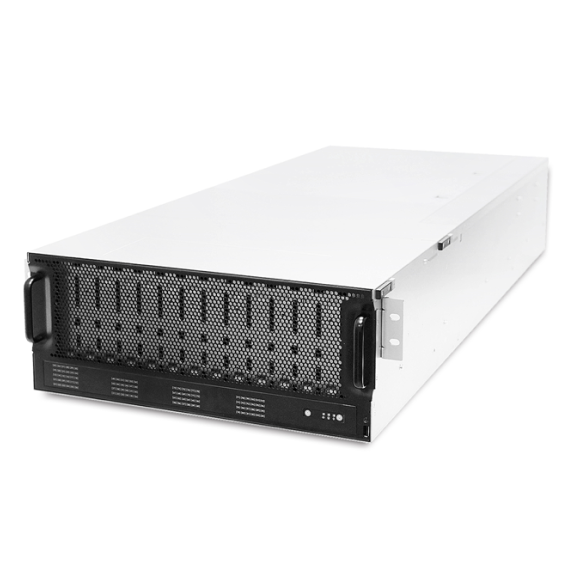

• 4U ultra-density storage server supports 102 hot swap 3.5” SAS drive bays
• Supports 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake Refresh/Cascade Lake/Skylake
• With Intel® Lewisburg C620 series chipset to provide 5+ years product life cycle
• Flexible I/O usage with Max I/O® to support up to 1 PCIe 3.0 card
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• One PCIe 3.0 x16 OCP Mezzanine slot
• Two 10GbE SFP+ ports
| Dimensions (W x D x H) |
| • mm : 434 x 1050 x 176 • inches : 17.1 x 41.3 x 7 |
| Chassis |
| 4U |
| Processor |
| • Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake) • Supports CPU TDP up to 125W *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
| UPI Speeds: 10.4 GT/s, 9.6 GT/s |
| Socket Type : Socket P0 (LGA-3647 Socket) |
| Chipset Support |
| Intel® Lewisburg C620 series PCH |
| System Memory |
| • 6 x memory channels per CPU, 2 channels with 2DPC + 4 channels with 1DPC • 16 x DIMM slots support: DDR4 2933/2666/2400MHz • Intel® Optane™ DC Persistent Memory (Apache Pass) support |
| Front Panel |
| System power on/off, System reset, 1 x USB 2.0 Type A |
| LEDs |
| Power status, Drive activity, System ID |
| Drive Bays |
| Internal : • 102 x 3.5” hot swap (Top-Loading) • 2 x 2.5″ hot swap (7mm, Top-Loading) |
| Backplane |
| • 3 x 24-port 12Gb SAS backplanes with 36-PHY expander and 2 x 8i SAS Slimline connectors • 1 x 30-port 12Gb SAS backplane with 40-PHY expander and 2 x 8i SAS Slimline connectors |
| Expansion Slots (PCIe 3.0) |
| 1 x16 for OCP Mezzanine V2.0 (Type 2:1 1 x QSFP or 2 x QSFP+) *Please contact AIC Technical Support for more info/details about OCP card. |
| System BIOS |
| BIOS Type: Insyde UFEI BIOS |
| BIOS Features : • ACP • PXE • WOL • AC loss recovery • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode • SRIOV • iSCSI • TPM • PICe Hotplug |
| On-board Devices |
| SATA/SAS : Intel® Lewisburg PCH on-chip solution • 4 x SATA 6.0 Gb/s (by 1 x mini-SAS HD) • 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin) • 5 x SATA 6.0 Gb/s (by Max I/O®) |
| BMC : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
| Network Controller : • Intel® PCH (Lewisburg) Integrated 10GbE LAN controller with dual SFP+ rear connectors • Intel® I350 dual-port GbE RJ45 rear connectors • Realtek RTL8211E for BMC dedicated management port |
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • PCIe VGA/2D Controller • 1920×1200@60Hz 32bpp |
| Rear I/O |
| LAN: • 2 x 10GbE SFP+ • 2 x GbE RJ45 • 1 x GbE RJ45 dedicated to BMC managementUSB: 2 x USB 3.0 Type A VGA: 1 x external DB-15 VGA port Serial Port: 1 x audio jack for COM port |
| TPM Support |
| 2.0 onboard |
| Power Supply |
| 2000W 1+1 redundant power supply 80+ Platinum • AC INPUT : 200~240V,50/60Hz,15A • Socket type: C20 (Power cord type: C19) |
| System Cooling |
| • 3 x 40x56mm dual rotor fans (MB canister) • 8 x 60x56mm hot swap fans |
| System Management |
| • IPMI 2.0 • KVM over IP • Media redirection • Temperature, fan, voltage, PSU sensor monitor • System temperature • System ID / System fail indicator • Remote power on/off/reset • SEL message alarm through mail • SNMP support • Intel NM • HTML5 • Redfish |
| Environmental Specifications |
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
| Gross Weight (w/PSU & Rail) |
| • kgs : 71 • lbs : 143.7 |
| Packaging Dimensions (W x D x H) |
| • mm : 640 x 1380 x 526 • inches : 25.2 x 54.3 x 20.7 |
| Mounting |
| Standard: 41″ tool-less slide rail Option: Cable Management Kit |
